Fluid Mechanics Kit

Fluid Mechanics Kit

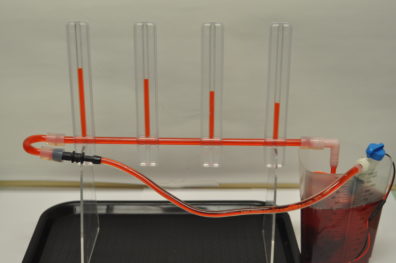

Hydraulic-loss-specific components

• 1 hydraulic-loss (HL) cartridge
• 1 3/8-inch u-bend (for HL inlet)
• 1 3/8-inch 90° elbow (for HL outlet)
• 1 tubing adapter to connect pump to inlet u-bend

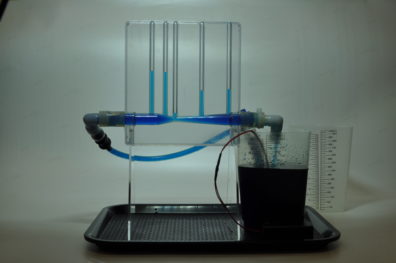

Venturi-specific components

• 1 venturi cartridge
• 1 5/8-inch 90° elbow and straight adapter (for venturi inlet)
• 1 5/8-inch 90° elbow with orifice plate (for venturi outlet)

Common components

• 1 universal stand (2 legs)
• 1 pump assembly
• 1 rechargeable NiMH 9V (280 mAh) battery
• 2 1-liter beakers
• 1 dry-erase marker
• 1 ruler
• 1 tray
• 1 9V battery charger (5-position or 2-position) shared between multiple fluid mechanics kits
