Heat Transfer Kit

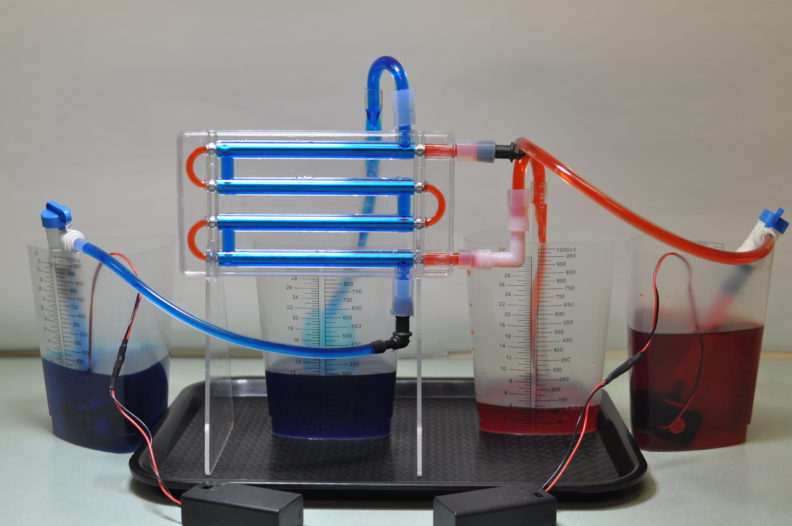

Double-pipe heat exchanger setup

Double-pipe-specific components

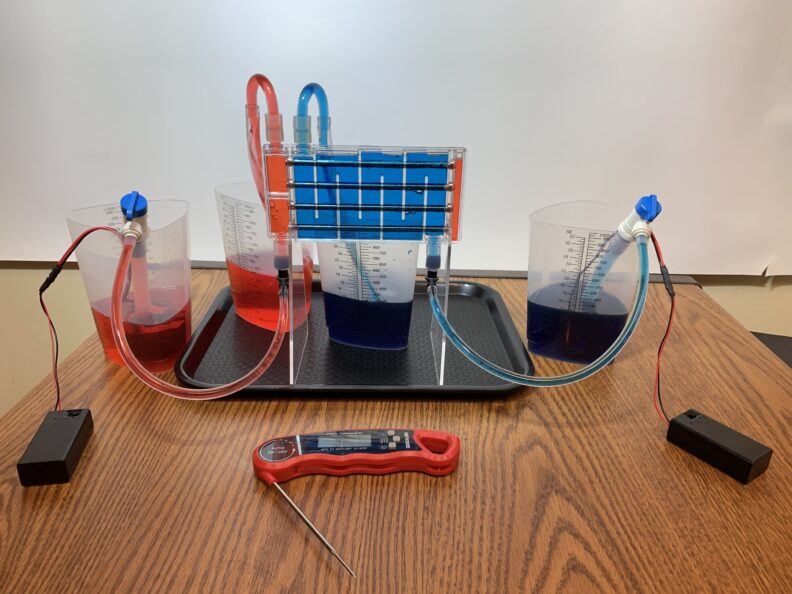

Shell-and-tube heat exchanger setup

Shell-and-tube-specific components

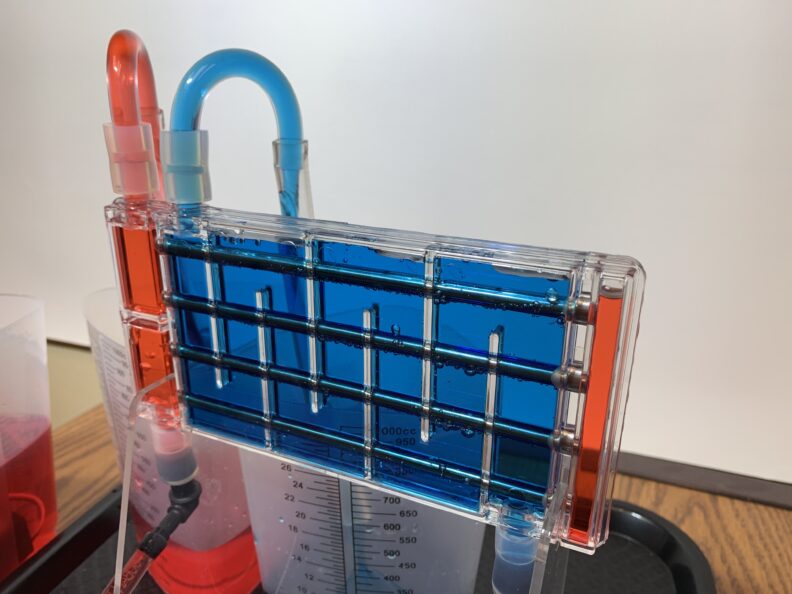

1 shell-and-tube heat exchanger cartridge

Common components

1 universal stand (2 legs)
2 pump assemblies
2 rechargeable NiMH 9V (280 mAh) batteries
4 1-liter beakers
2 90° adapters (pump to 3/8-inch tube)
2 3/8-inch u-bend connectors (for heat exchanger outlets)
2 Tygon outlet tubes
1 digital thermometer
1 red dry-erase marker
1 blue dry-erase marker
1 tray
1 5-position 9V battery charger shared between kits (or a 2-position charger if using only one kit)
