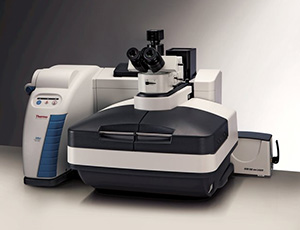

DXR2XI Raman Imaging Spectrometer

  • 455 nm laser
    • standard grating, 50 – 3500 cm-1 range, 4 cm-1 resolution; (min-max λ: 456-541 nm)
  • 532 nm laser
    • standard grating, 50 – 3500 cm-1 range, 4 cm-1 resolution; (min-max λ: 533-654 nm)
    • extended range grating, 50 – 6000 cm-1 range, 10 cm-1 resolution; (min-max λ: 533-781 nm)
  • 785 nm lasers
    • high resolution grating, 50 – 1800 cm-1, 2 cm-1 resolution; (min-max λ: 788-914 nm)
    • standard grating, 50 – 3500 cm-1 range, 4 cm-1 resolution; (min-max λ: 788-1054 nm)
  • Raman mapping
    • 0.5 μm spatial resolution
    • 2 μm confocal depth resolution
